With laminboard fabricated, and templates made, we turned to constructing guitar bodies. The original Red Special was built using two 3/4" thick pieces of laminboard, with internal cavities for resonance and sustain, and to house the electronics. An oak block, shown below, provides internal strength for the guitar.
 |
| Laminboard cut roughly to shape on the bandsaw |
 |
| Templates ready to go! |
 |
| Using the drill press with a large Forstner bit to hollow out the internal cavities |
 |
| The router with a bearing to follow the template |
 |

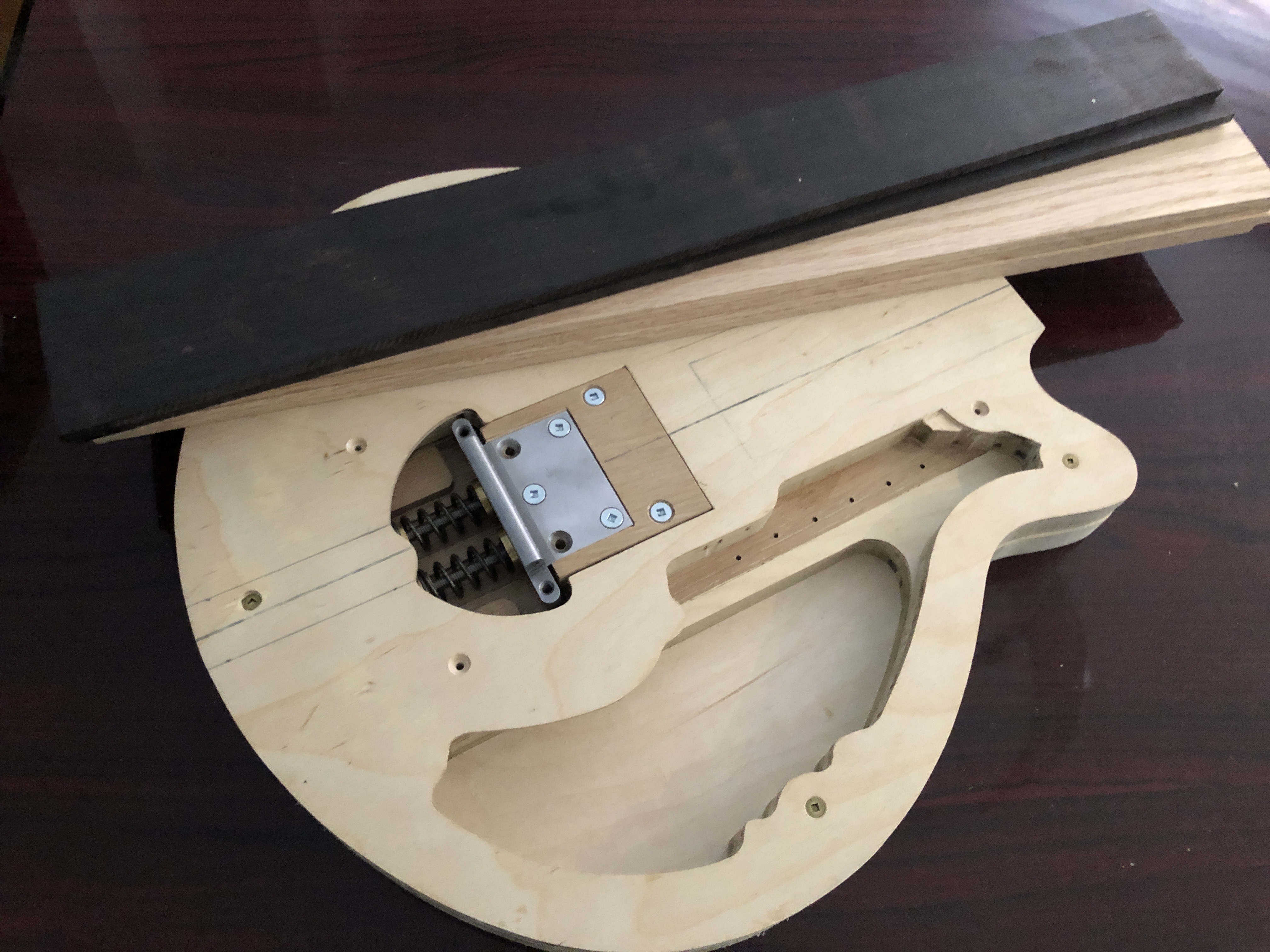

| Guitar body with cavities and shape routed |
 |
| Installing the legendary knife edge tremolo system |
 |
| Veneer (Sapele here) glued and curing |
 |
| After routing and gluing the binding, it is scraped flush with the guitar body |
 |
| Guitar bodies ready for finishing |
Finishing means sanding, levelling, grain filling, sealing, staining (or not, for a natural finish), and clear coating the guitar. More about that later.
